How to create a table in LaTeX with fixed width?

Problem

If the default tabular environment is used, every colunm get the width they need. This could lead to extra wide tables or to a bad looking if the width differs between the rows.

Solution

One solution is to use the p-parameter of the tabular environment. This has the disadvantage that the cells could only be in justify format.

Example

\documentclass{article}
\begin{document}

\begin{tabular}{|p{1cm}|p{2cm}|p{3cm}|}
\hline
1 cm width & 2 cm  width & 3 cm  width \\
\hline
test 1 & test 2 & test 3\\
\hline
\end{tabular}


\end{document}

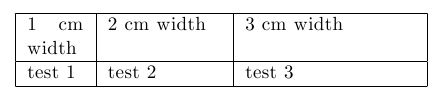

Output:

Hint

The alignment of the cells could be changed by using the package tabularx and define three new row-types: flush left fixed width:
\newcolumntype{L}[1]{>{\raggedright\arraybackslash}p{#1}}

center fixed width:
\newcolumntype{C}[1]{>{\centering\arraybackslash}p{#1}}

flush right fixed width:
\newcolumntype{R}[1]{>{\raggedleft\arraybackslash}p{#1}}

example 2

\documentclass{article}
\usepackage{tabularx}
\begin{document}
\newcolumntype{L}[1]{>{\raggedright\arraybackslash}p{#1}}
\newcolumntype{C}[1]{>{\centering\arraybackslash}p{#1}}
\newcolumntype{R}[1]{>{\raggedleft\arraybackslash}p{#1}}

\begin{tabular}{|L{1cm}|C{2cm}|R{3cm}|}
\hline
1 cm width & 2 cm  width & 3 cm  width \\
\hline
test 1 & test 2 & test 3\\
\hline
\end{tabular}

\end{document}

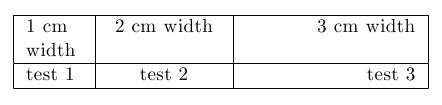

output:
